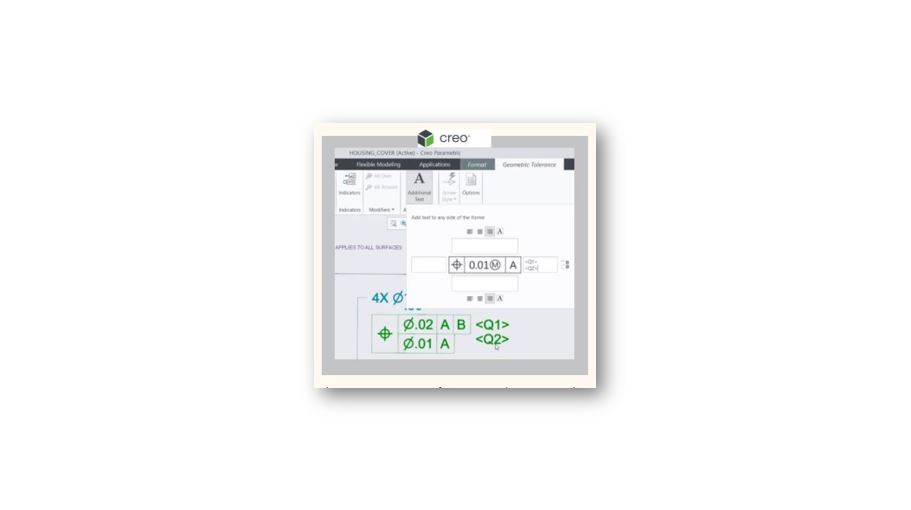

Starting with Creo 7, there is a new option for spacing alignment in the Additional Text dialog box. Additional Text dialog box is available from the Geometric Tolerance tab. This is useful when you need to include additional text on the right side of a composite GTOL and want to ensure that it is evenly aligned with the different rows of the composite GTOL. As a result, there is better compliance with the ISO 8062-2 standard.

User Interface: Click Annotate —> Geometric Tolerance —> Additional Text.
