This is a post by Bettina Giemsa on PTC site.

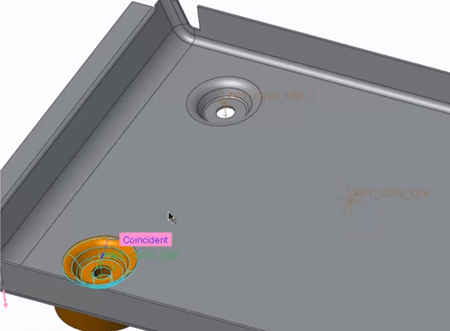

The die form workflows and user interface have been enhanced and modernized in PTC Creo 3.0 so they are consistent with those of the punch form tool. If the reference model has a coordinate-system component interface configured, you can quickly place a die form reference part as an on-surface coordinate system or by using component interfaces.
