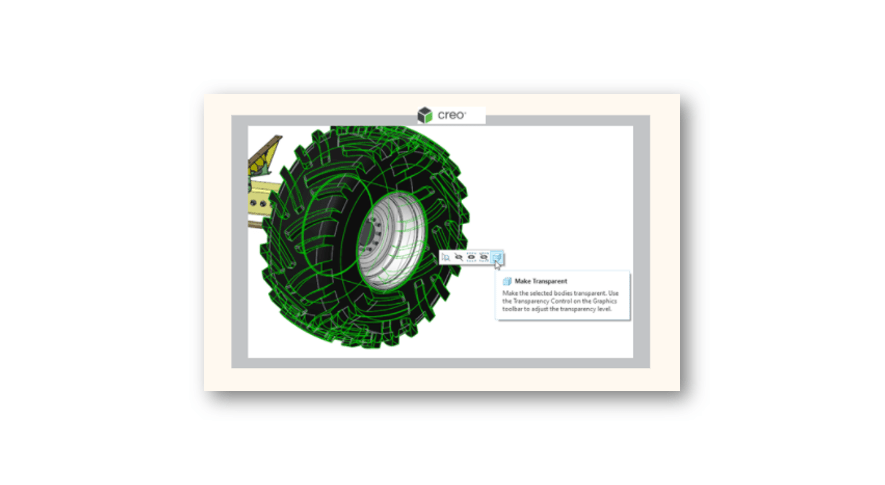

Previously, it was not possible to easily change the display of geometry representation in Creo Parametric without setting an appearance or changing the system appearances. This enhancement allows you to quickly control the display of representation geometry without setting the defined appearances or appearance states. You can now set the exact transparency value for each control filter or access the transparency slider.
