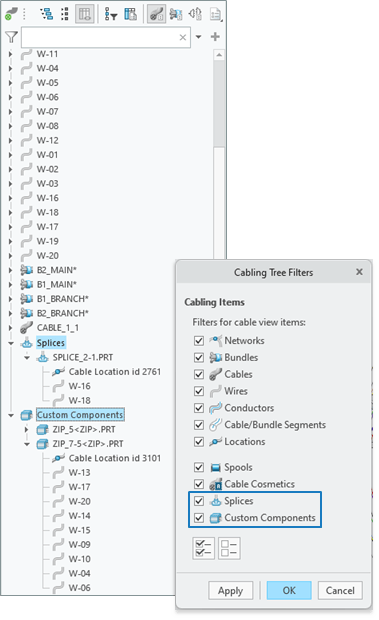

Previously in the Cabling Tree, only stiff shrinks were supported among all cosmetic features. However, in this release, all cosmetic features including markers, tapes, tie wraps, and branch tapes have been incorporated into the Cables and Bundles views of the Cabling tree. Additionally, Splices (including In-Line Connectors) and Custom Components are now displayed in all views of the Cabling Tree, with new filters added to control visibility.

Additional enhancements include:

  • Displaying the active harness name on the first node in the Cabling Tree.
  • Elevating networks to the top of the tree structure.
  • Displaying terminators by their names instead of their IDs.

Benefits:

These Cabling Tree enhancements offer comprehensive visibility into the harness structure and its components, thereby enhancing productivity and efficiency in the cabling application.

For more information, Follow this link.
