Starting with Creo 7, you can add columns to the Drawing Tree to view various types of information. This provides you with more information about the drawing view and its relation to other views. Now it is easier to understand which view is owned by which model. You can see related parent and child views and get additional information. For example, the state and scale of views, without switching to other sheets in the drawing.

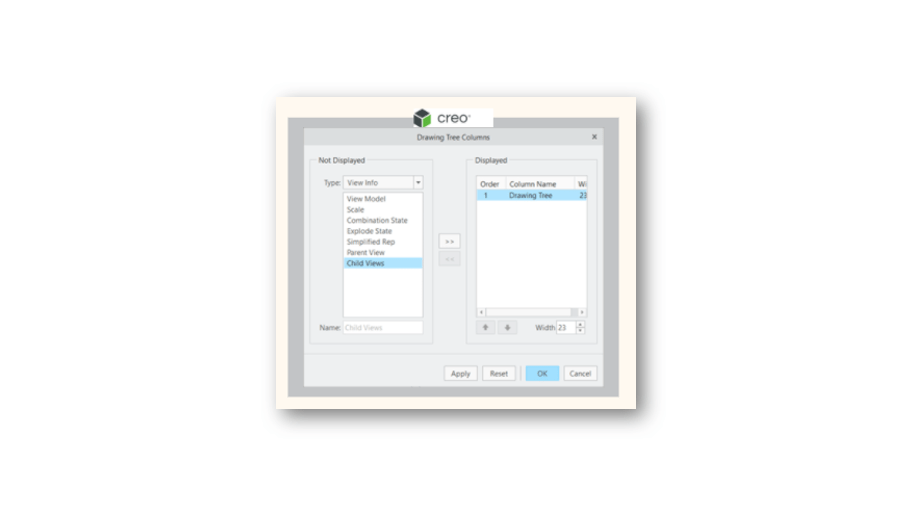

User Interface: When in a drawing, in the drawing tree click tree columns to open the drawing tree columns dialog box.
