Starting from Creo Parametric 9.0, the process to split a mold volume in Mold Design application is now streamlined. provides more flexibility and control when you define mold volumes.

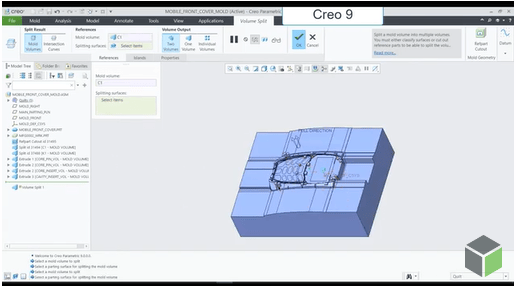

You can split a mold volume in the following ways:

  • Two Volumes — This option splits a mold volume into two separate volumes. One of these volumes contains a portion of the mold design, and the other volume contains multiple selected volumes split from the mold design. This is the default option.
  • One Volume — This option splits a single volume out of the mold design that contains multiple selected volumes split from the mold design.
  • Individual Volumes — This option splits the mold design into multiple separate volumes.

For more information, follow this link.

User Interface Location :

In Mold Design, click Mold > Mold Volume
