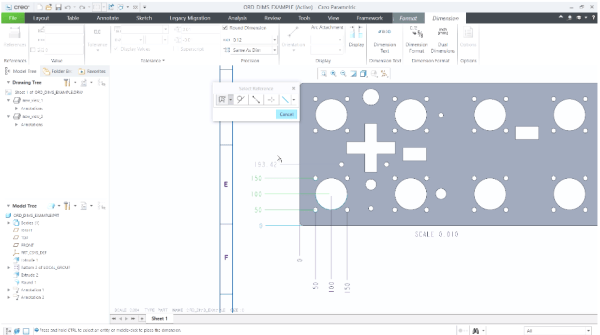

Starting with Creo Parametric 7.0.0.0, there’s better control over the placement of ordinate dimensions that are created in models and drawings. This can be done by setting the detail option, default_ansi_ord_dim_aligned. Your options for this option are Yes – Align with the baseline dimensionNo – Stay at the position of the pointer until you place it. When…
