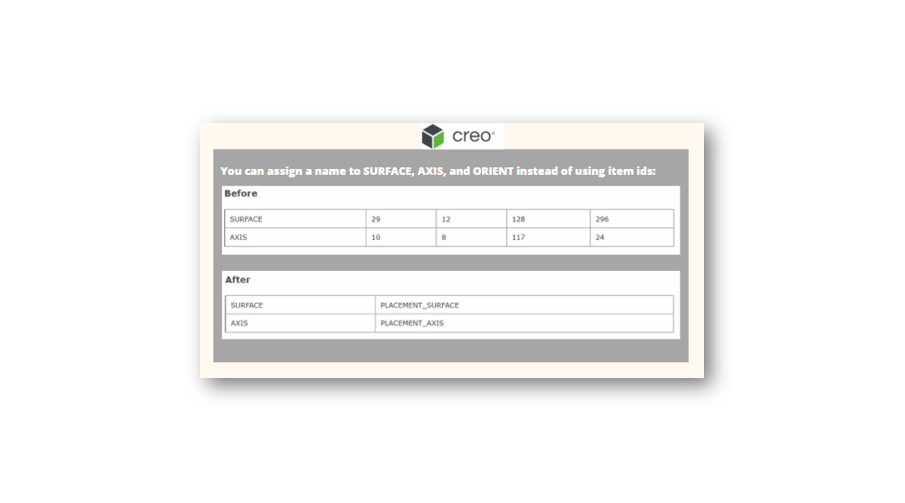

In the fastener data file, you can use one name instead of different identifiers (ids) to place references.

You can also add columns to #SURFACE, #AXIS, and #ORIENT to control the item ids of each fastener instance.

With Creo 7.0, it is easier to customize the file and there’s more flexibility as you can assign different ids for each instance in your fastener data file.
