The body node is supported in the Model Tree when you are working with drawings. It is similar to the support for bodies in the model environment. You can right-click a body in the Model Tree and show or hide in the model and consequently in the drawing.

If you select a body in the Model Tree, the body is highlighted in the active drawing sheet. This makes it easy for you to see the body structure from the model in the drawing.

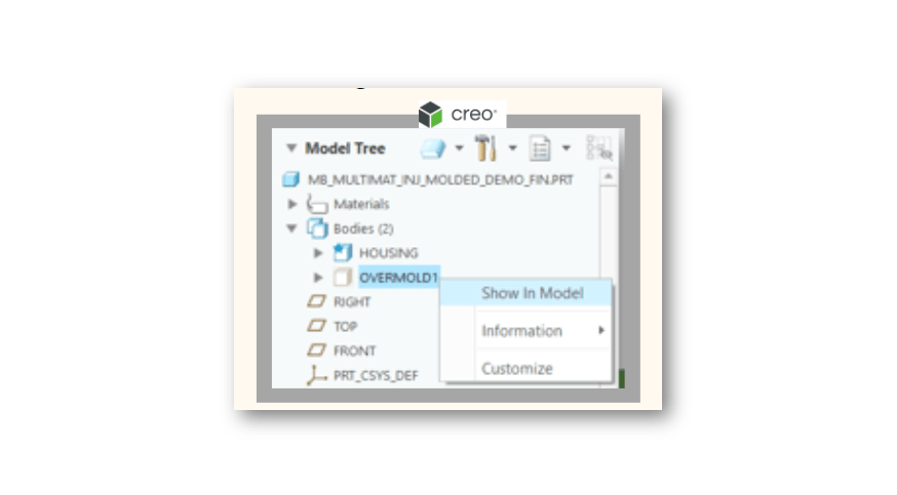

User Interface Location: In the Model Tree under Bodies, right-click and select Show In Model or Hide In Model.
