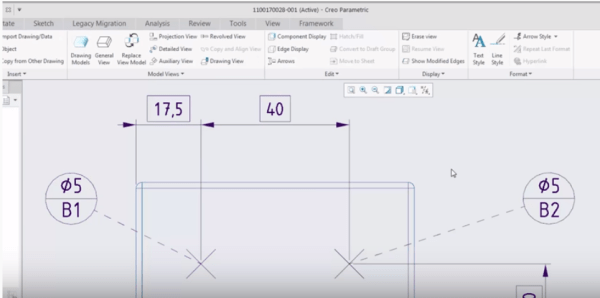

With PTC Creo 4.0, the dashed leader line option can be used to indicate the placement of datum target on surface on the far side of the drawing view.
To set the dashed leader line, select the “Far side” option in the Datum Target tab as shown below
